Replacing the Bluetooth Module...
Previous steps required...

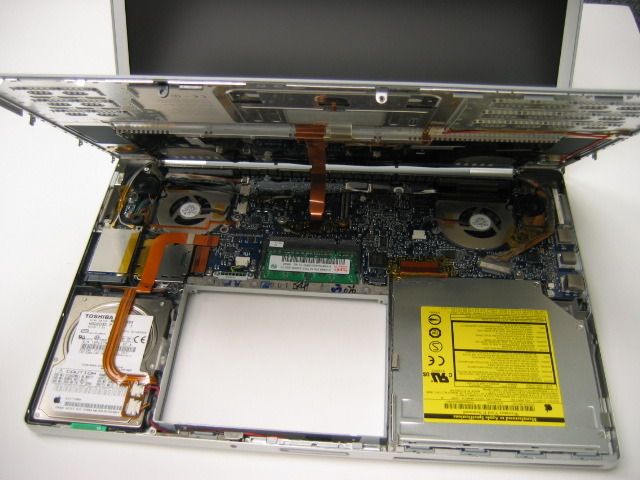

Opening the MacBook Pro

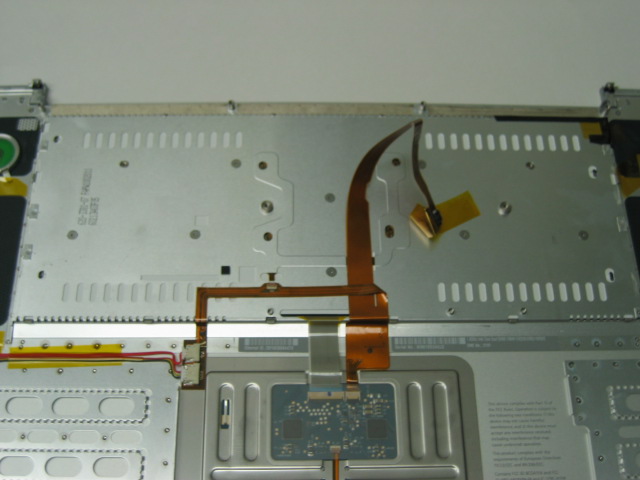

Removing the Top Case

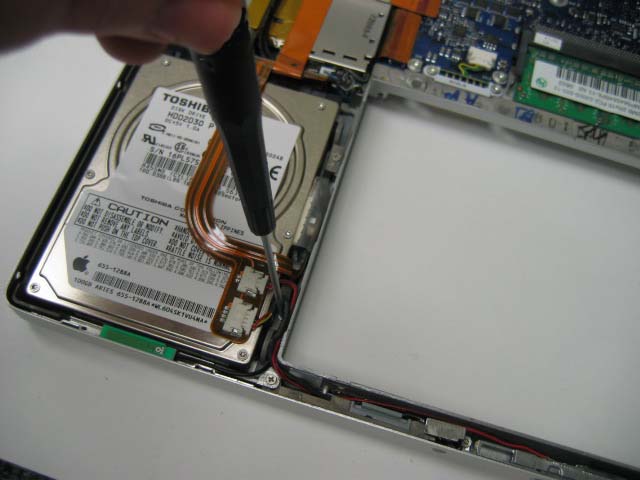

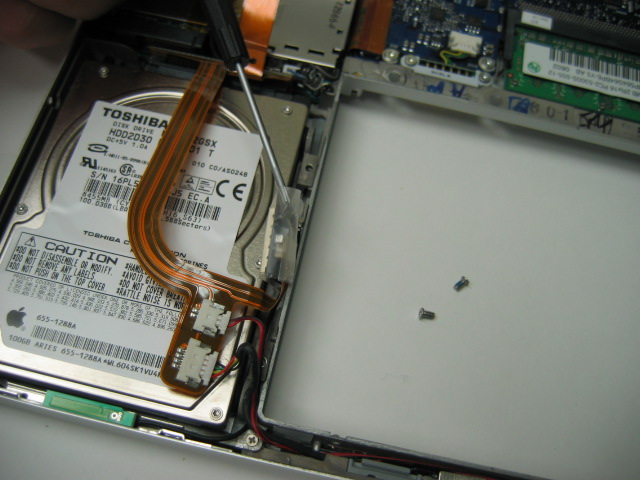

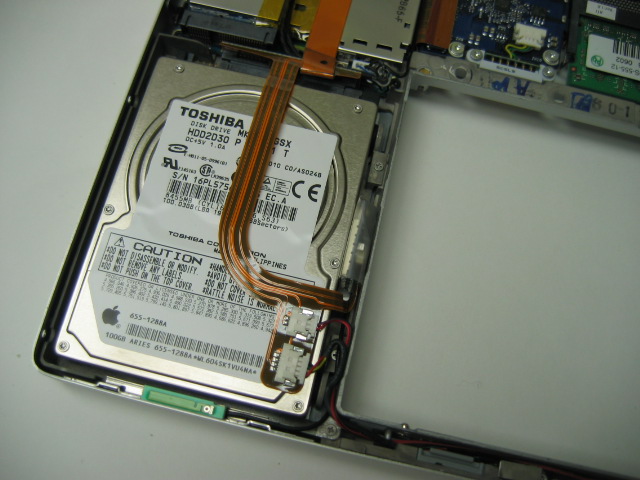

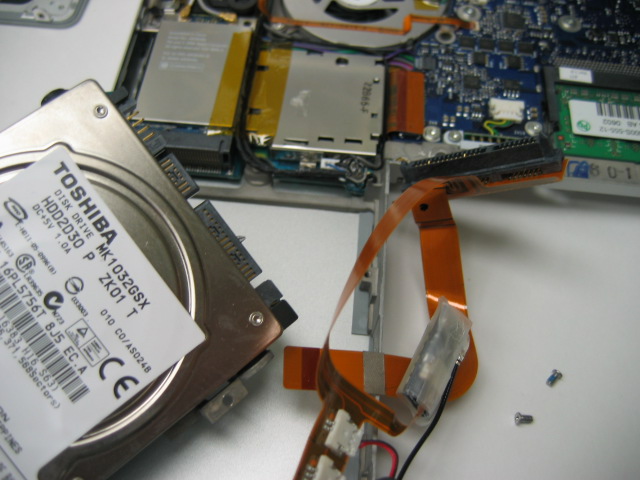

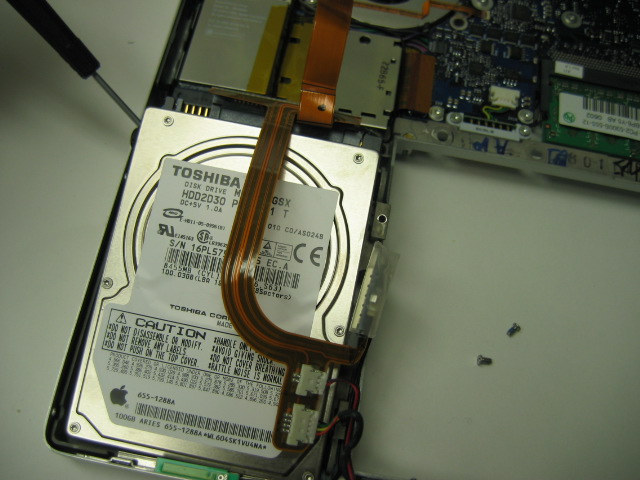

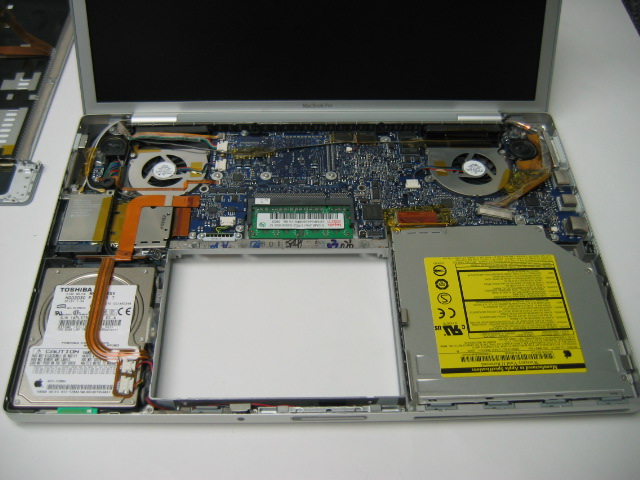

If you haven’t found it yet, the Bluetooth Module is nestled on the
right side of the hard drive in the lower left corner. You can gently stick a
spudger into the plastic that surrounds the module and lift up to free it.
Once freed you should notice two cables attached to it. One cable is
going to be black in color and round. This is the antenna cable. It is at-
tached to the board here and runs off around the case in order to give you
the maximum signal strength possible with the antenna. This antenna
cable is much like a coaxial cable for the television. It has one small
straight pin on the cable that needs to go into the hole on the bluetooth
module. It doesn’t screw in, however, and needs to be removed by pull-

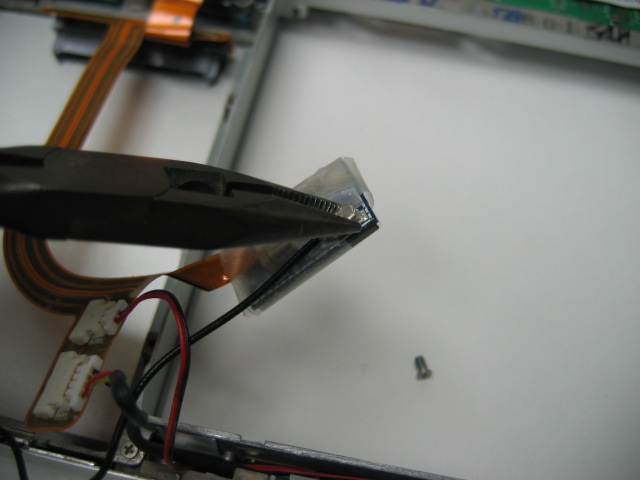

ing up as straight as possible. As pictured above, it is best to use some
needle-nose pliers to grab a hold of the end of the antenna cable and pull
straight up away from the board.

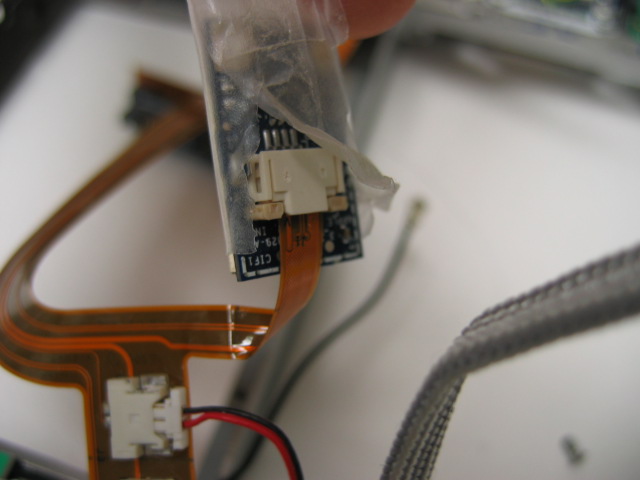

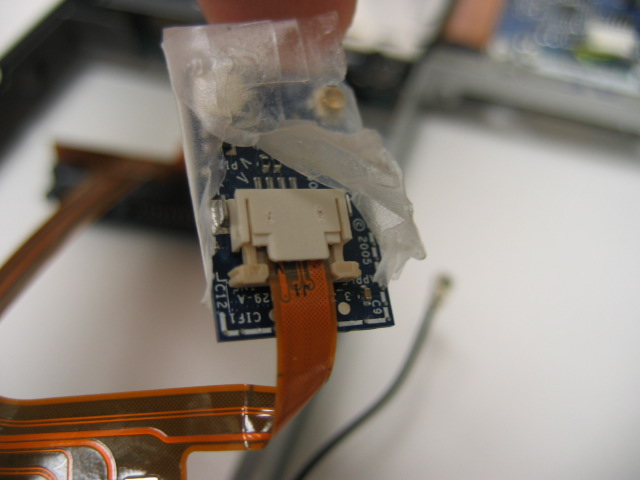

The other cable attached to the Bluetooth board is the data cable. It
is attached by a special locking mechanism. You should see from the
pictures above. There is the darker tan colored piece that needs to be
gently slid out in order to unlock the cable so it can be removed. Once
both sides are slid out, just pull the cable to free it. You can now replace
the Bluetooth module and close the machine back up.
[10]
THE BLUETOOTH MODULE
WIRELESS CAPABILITIES
AIRPORT
BLUETOOTH
INFRARED
Airport Express
Every MacBook Pro comes
with Airport. This allows
wireless networking with
fast speeds.
Bluetooth 2.0
With Bluetooth, you can
wirelessly connect
devices to your MacBook
Pro.
Apple Remote
With the Apple
remote you can
play with the
Front Row
software.
Needle-nose
pliers
recommended.
Enlarge
Enlarge
Enlarge
10
